Model	Load Capacity kg	Size (mm)	Upward/Downward Tilt Angle	Fork Length mm	Compaction Travel mm	Installation Grade	Self Weight kg
TLF15A-D18C	1500	1590×1350	5°/45°	1200	120-1800	Ⅱ	649
TLF15A-D18F	1500	1740×1350	5°/45°	1350	120-1800	Ⅱ	670
TLF20A-D18C	2000	1590×1350	5°/45°	1200	120-1800	Ⅱ	649
TLF20A-D18F	2000	1740×1350	5°/45°	1350	120-1800	Ⅱ	688
TLF20A-D18G	2000	1890×1350	5°/45°	1500	120-1800	Ⅱ	714
TLF25A-D18C	2500	1593×1350	5°/45°	1200	120-1800	Ⅲ	662
TLF25A-D18F	2500	1743×1350	5°/45°	1350	120-1800	Ⅲ	703
TLF25A-D18G	2500	1893×1350	5°/45°	1500	120-1800	Ⅲ	729

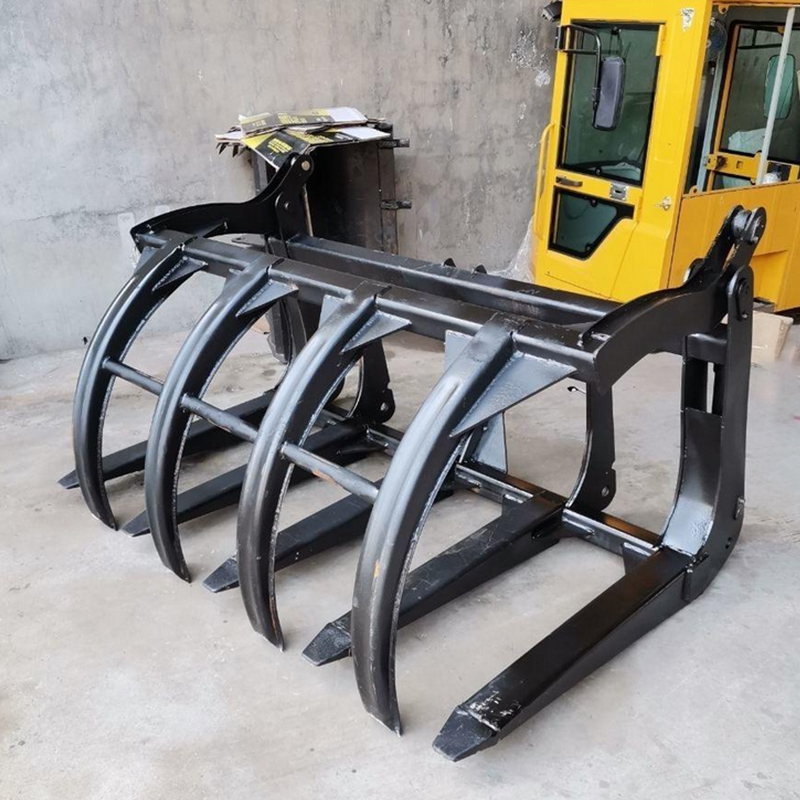

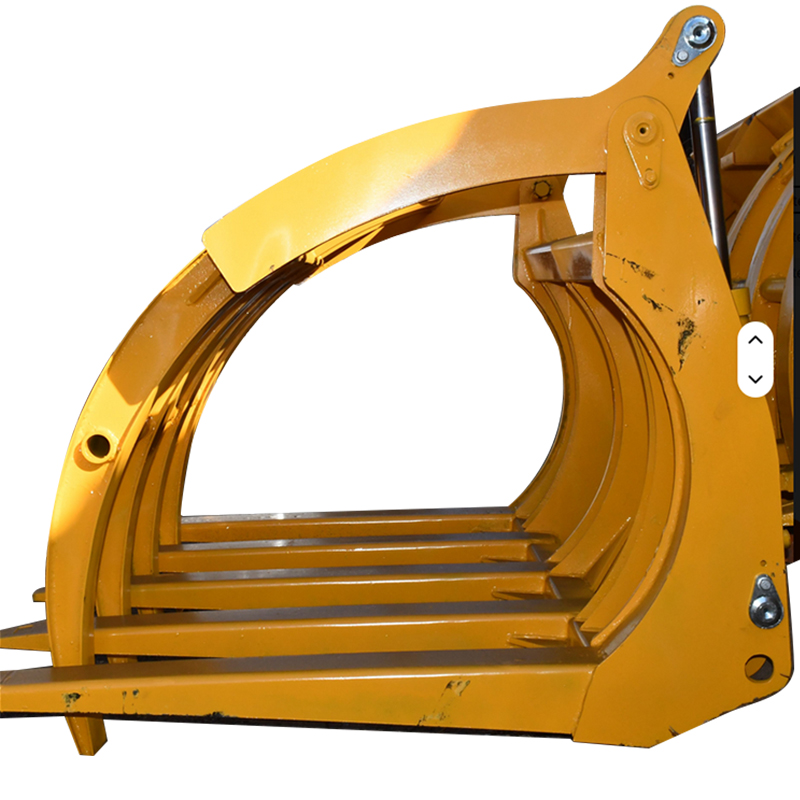

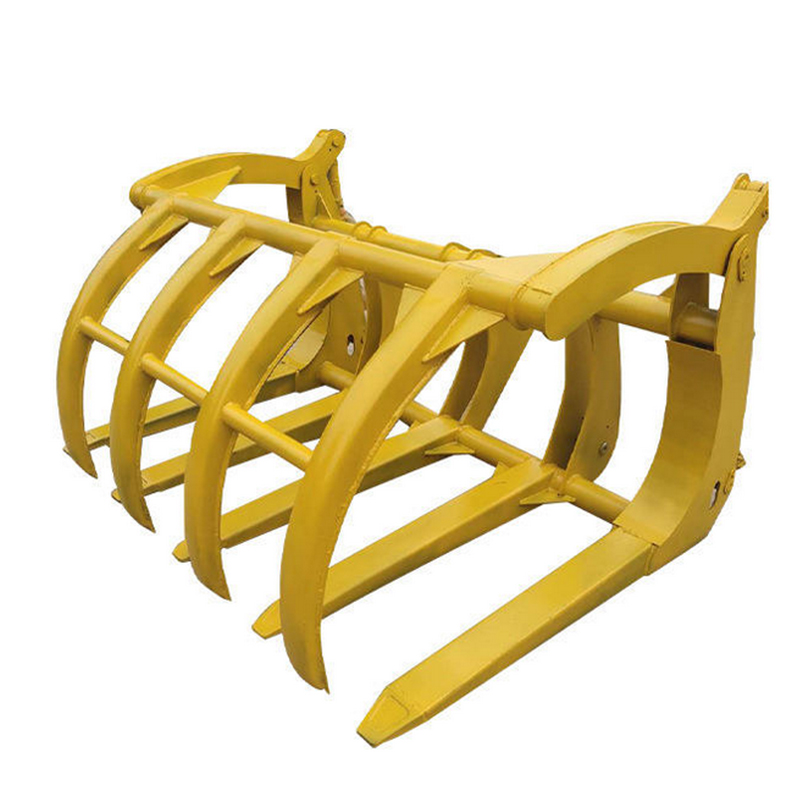

Equipment for handling, stacking, and loading/unloading various round woods

Round wooden clips, also known as wooden forks or wooden shovels, have different names depending on the region. They are mainly used for the handling, stacking, and loading and unloading of round wood. The fork of this equipment adopts an adjustable design to adapt to round logs of different lengths, and the hydraulic components are designed reasonably to extend the system life.

Equipped with an integral valve plate to simplify the installation and operation process, each joint part adopts an oil-free lubrication system to reduce maintenance requirements. The forward tilt angle has been optimized to enhance the convenience of inserting and removing goods, and the overall structure combines compactness and wide field of view, achieving the effect of saving labor, reducing labor intensity, and being safe and efficient.

Suitable for the handling, stacking, and loading/unloading of various round woods, saving labor, reducing labor intensity, and ensuring safety and efficiency.

Product Features
·Forks are adjustable and suitable for handling round logs of various lengths;
·Reasonable design of hydraulic components, effective protection of hydraulic systems, and long service life;
·Integrated valve plate design, easy to install, easy to understand, and easy to operate;
·Each joint part adopts an oil-free lubrication system, which is maintenance free and provides good protection for the pin shaft;
·The increase in forward tilt angle facilitates the operator's insertion and unloading of goods;
·Reasonable design, compact structure, wide field of view, and easy maintenance.
