Indicator	Unit	60 ＂ -560	66 ＂ -560	72 ＂ -560	72 ＂ -670	84 ＂ -670
working width	mm	1524	1676	1828	1828	2130
Brush diameter	mm	560	560	560	670	670
Bucket capacity	m3	0.32	0.35	0.4	0.5	0.55
Work pressure	MPa	16	16	16	16	16
Workflow	L/mm	50-75	50-75	50-75	50-125	50-125
Weight	kg	380	420	520	590	600
Length	mm	1895	2050	2200	2200	3500
Width	mm	1350	1350	1350	1560	1560
Height	mm	620	620	620	720	720

overall structure

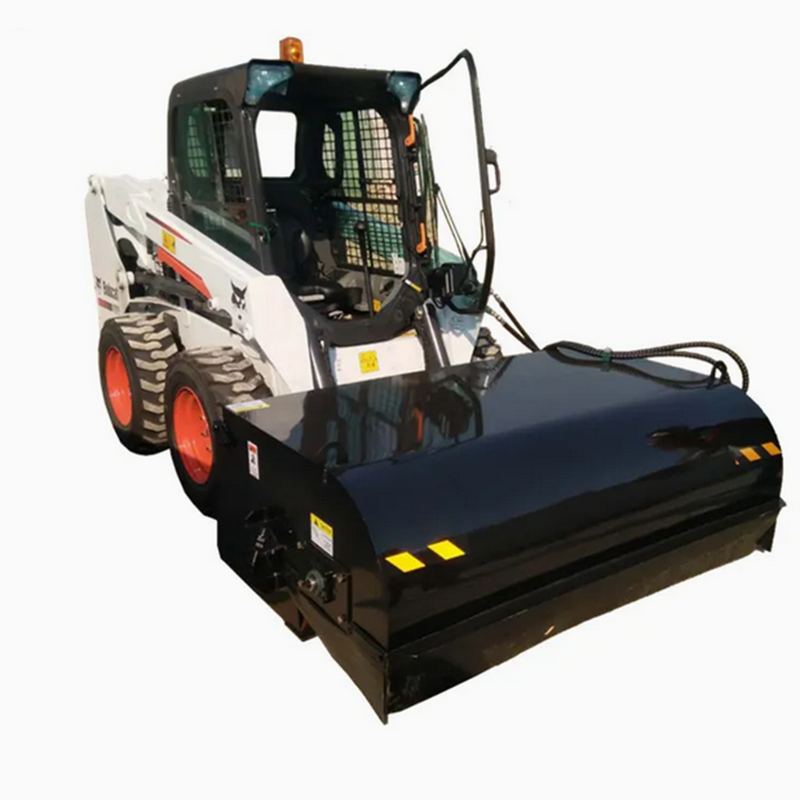

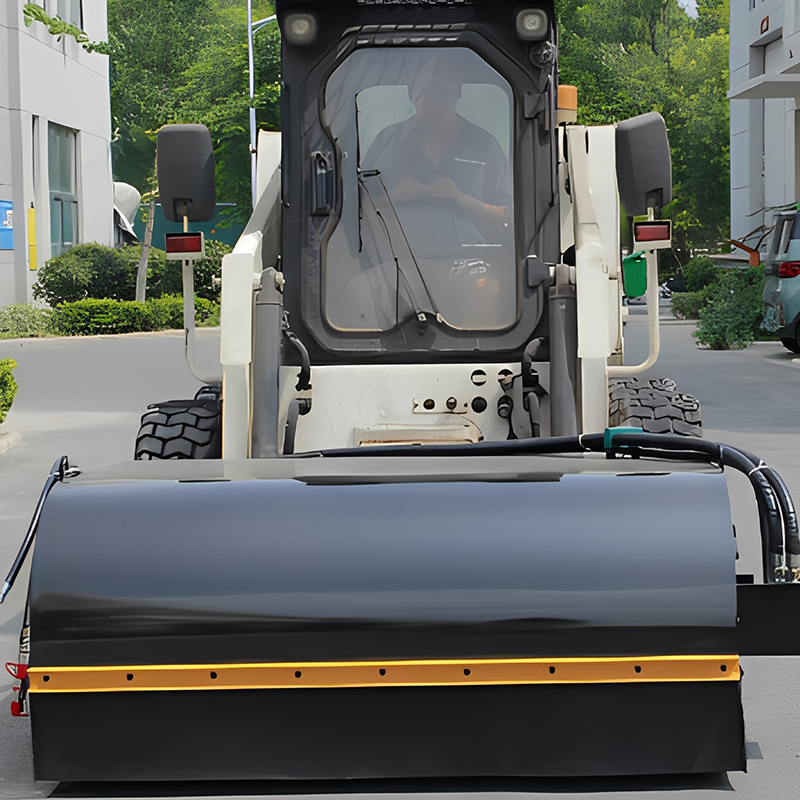

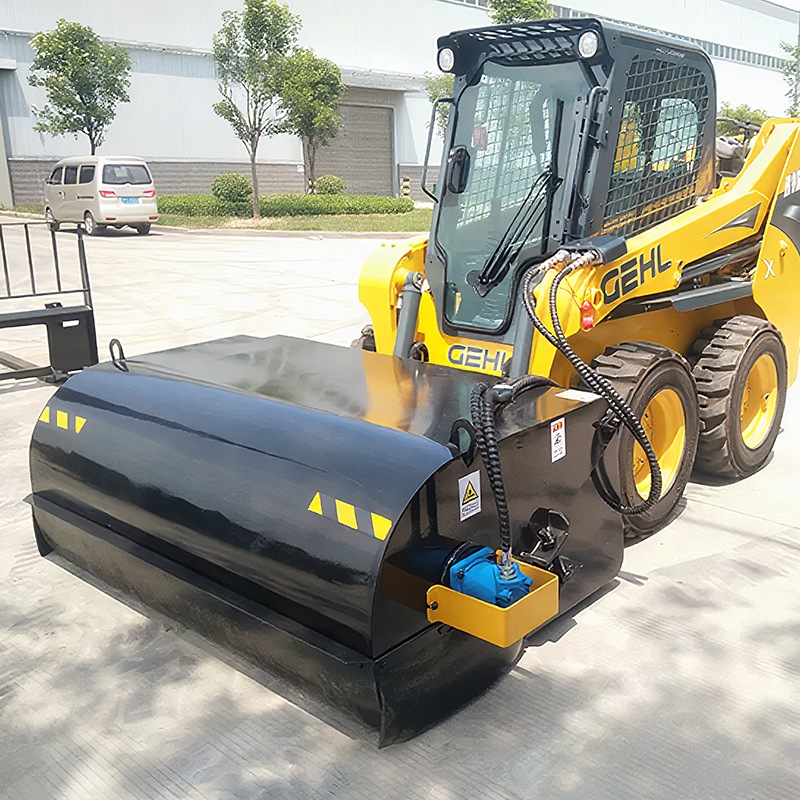

Closed cleaning machine: usually composed of an upper box, a lower box, brush rollers, drive components, etc. The upper and lower boxes are connected by a hinge structure or rotation, making it easy to adjust the angle and repair internal components. The brush roller is installed inside the upper box, with multiple cleaning brushes fixed on top for cleaning large areas of dust, debris, etc.

Corner brush: Generally installed on the side or front corner of a closed cleaning machine, controlled by a separate hydraulic motor or driving device, it can rotate flexibly to clean the corners, roadsides, walls, and drainage ditches of the main cleaning area, expand the cleaning range, and improve the comprehensiveness of the cleaning.

working principle

Drive system: The hydraulic system of the skid steer loader provides power for the enclosed sweeper and corner brushes. Hydraulic oil is transported to various hydraulic motors through oil pipes, driving the brush rollers and corner brushes to rotate and achieve cleaning function.

Cleaning process: The brush roller of the enclosed cleaning machine rotates at high speed under the driving component, and the brush comes into contact with the ground or work surface, sweeping up dust, stones, loose materials, etc. and rotating them into the lower box for collection. At the same time, the corner brushes are driven by hydraulic motors to clean the corner areas at appropriate angles and speeds, removing debris from areas that are difficult to reach by the main brush rollers to the main cleaning area, which is then collected by a closed cleaning machine.

Product Features

Efficient cleaning: The large area brush roller of the enclosed cleaning machine, combined with corner brushes, can quickly and effectively clean various types of debris, greatly improving cleaning efficiency and reducing cleaning time and labor costs.

Good cleaning effect: The enclosed design can prevent dust and debris from flying during the cleaning process, keeping the working environment clean. The addition of corner brushes ensures that easily overlooked areas such as corners can also be thoroughly cleaned, avoiding missed scanning and improving the overall cleaning effect.

Strong adaptability: It can adapt to different ground conditions and cleaning tasks by adjusting the angle between the upper and lower boxes, the height of the brush roller, and the position and angle of the corner brush according to different work scenarios and cleaning needs. In addition, it can also adapt to various working environments, such as municipal roads, parking lots, warehouses, docks, etc.

High durability: Made of high-quality materials such as wear-resistant brush materials, sturdy box structure, and reliable hydraulic components, it can withstand long-term use and harsh environmental tests, reduce equipment maintenance frequency, and extend service life.

Easy to operate: The driver of the skid steer loader can easily control the start, stop, speed adjustment, and angle adjustment of the enclosed cleaning machine and corner brush by operating the hydraulic control handle in the cab. The operation is simple and convenient, reducing the labor intensity of the operator.

Application field

Municipal sanitation: used for daily cleaning and sanitation of public places such as urban roads, sidewalks, squares, parks, etc., to maintain the cleanliness of the urban environment.

Industrial premises: suitable for floor cleaning in industrial areas such as factory workshops, warehouses, logistics centers, etc., to remove dust, debris, scraps, and other debris generated during the production process and maintain a good working environment.

Construction site: The construction site can be cleaned to remove construction waste, soil, sand and gravel, ensuring the cleanliness and safety of the construction site, which is conducive to the smooth progress of construction.

Dock port: capable of cleaning the cargo residue, dust, water stains, etc. on the dock floor, maintaining the cleanliness of the dock operation area, and improving the operational efficiency and safety of the dock.

Parking lot: Whether it is an outdoor parking lot or an indoor parking lot, this equipment can be used for cleaning, removing dust, garbage, etc. generated during vehicle driving and parking, and improving the overall environmental quality of the parking lot.
